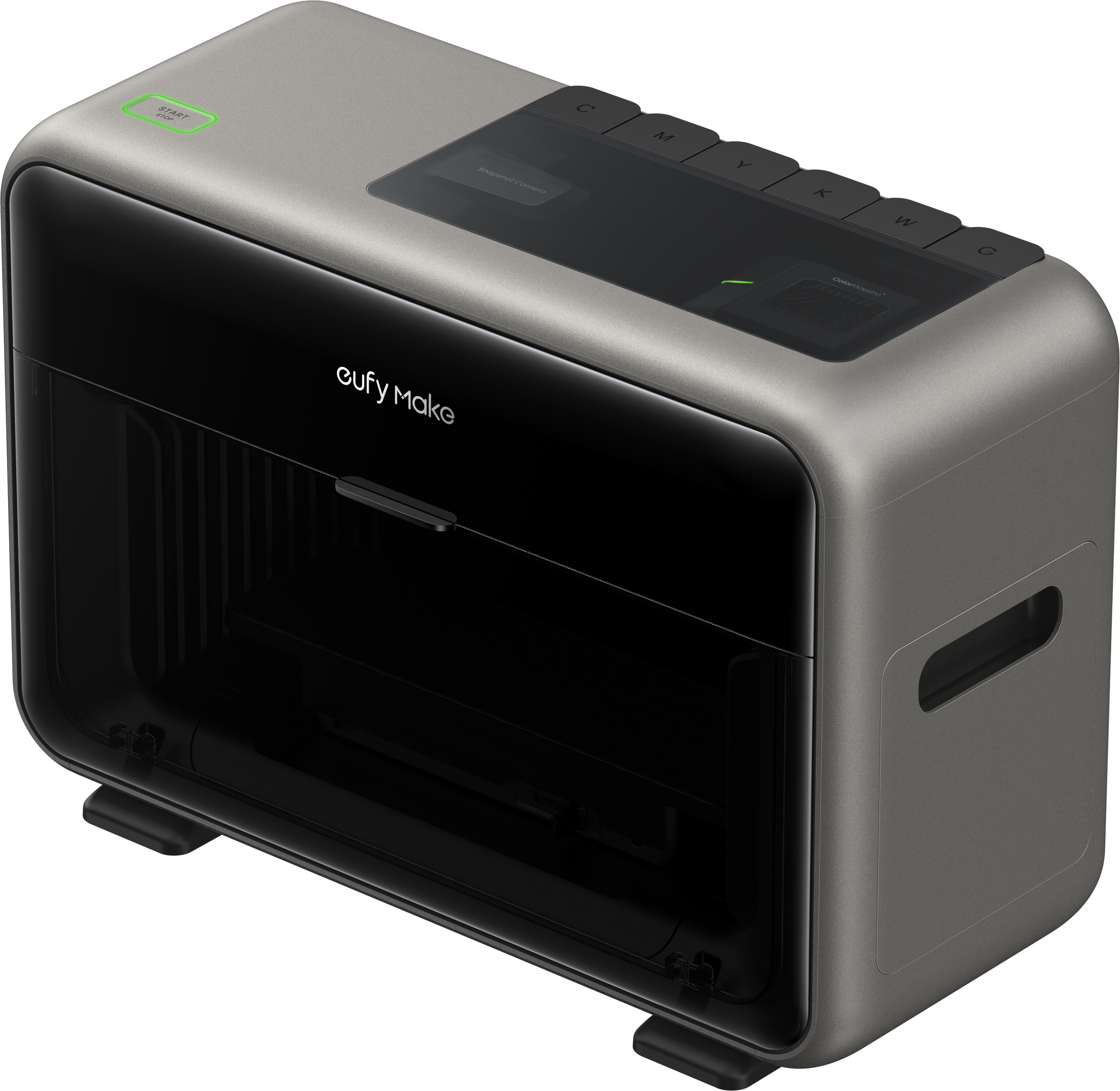

eufyMake E1 with UV DTF Laminating Machine Set, 1 Set

UV printer with UV DTF laminator

New!

Content: 1 Set

Delivery to Switzerland is not possible.

Features & Advantages

  • Print area of 330 x 420 mm
  • 300+ materials
  • Self-cleaning JetClean system
  • Dual laser + snapshot camera

Similar products

  • placeholder
  • placeholder
  • placeholder
  • placeholder

Product information & technical details

Description

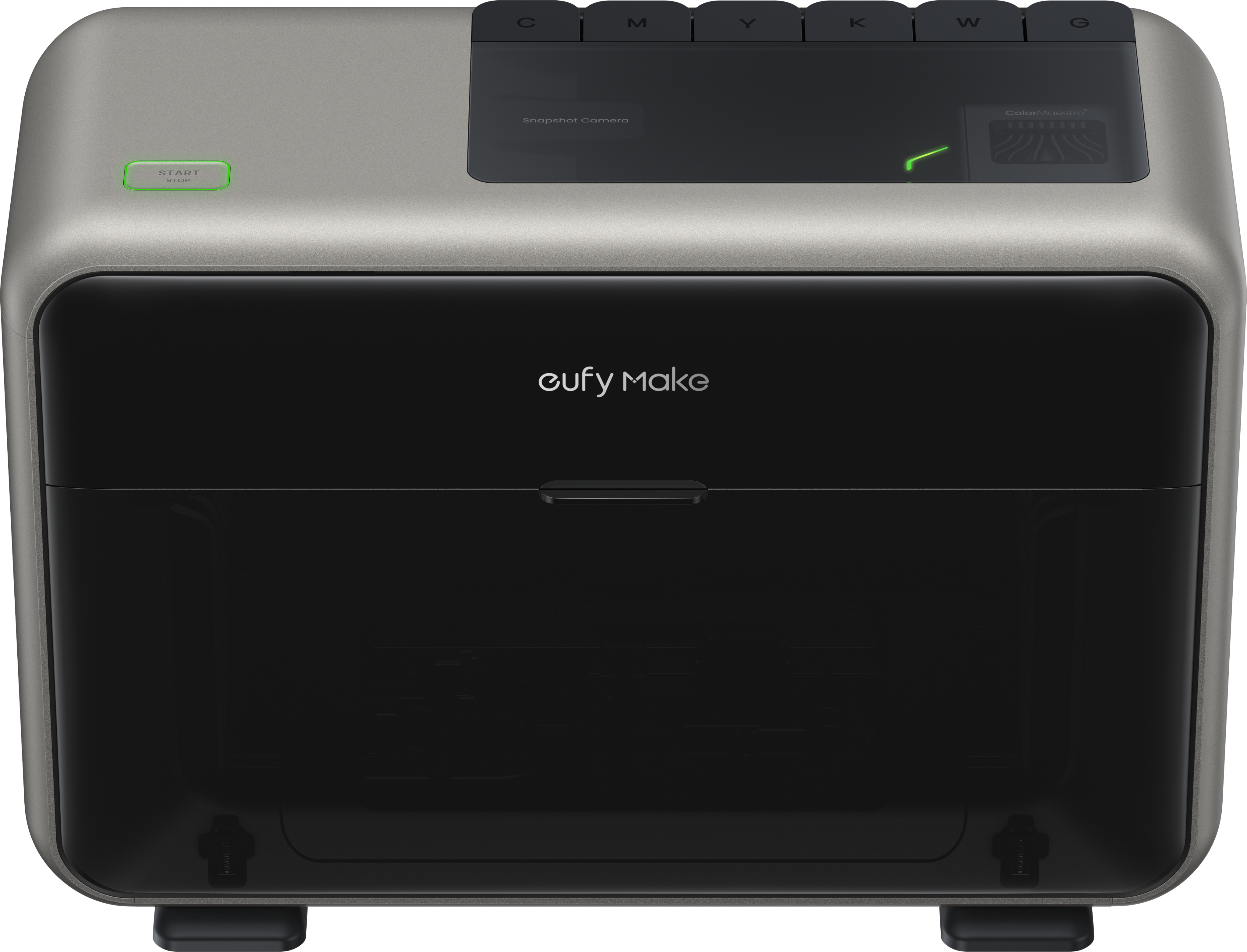

The eufyMake E1 takes UV printing to a new level and combines high-precision colour printing with real 3D texture! Thanks to innovative technologies, prints are created that are not only visible but also feelable with impressive depth and detail accuracy.

3D Texture Printing with Amass3D™

Amass3D™ technology enables realistic surface structures with noticeable depth. Every detail becomes tangible, whether it's brushstrokes, leather look or natural structures.

Even the finest textures, such as scales, feathers or surface embossments, are represented so realistically that they convince visually and haptically.

Brilliant Colours with ColorMaestro™

ColorMaestro™ technology ensures true-to-life colour reproduction with high clarity. UV inks remain colour-stable even under UV radiation and weathering influences.

Ultra High Print Resolution

With up to 1440 DPI, the eufyMake E1 UV printer delivers razor-sharp print results with the finest details.

Maximum Material Variety

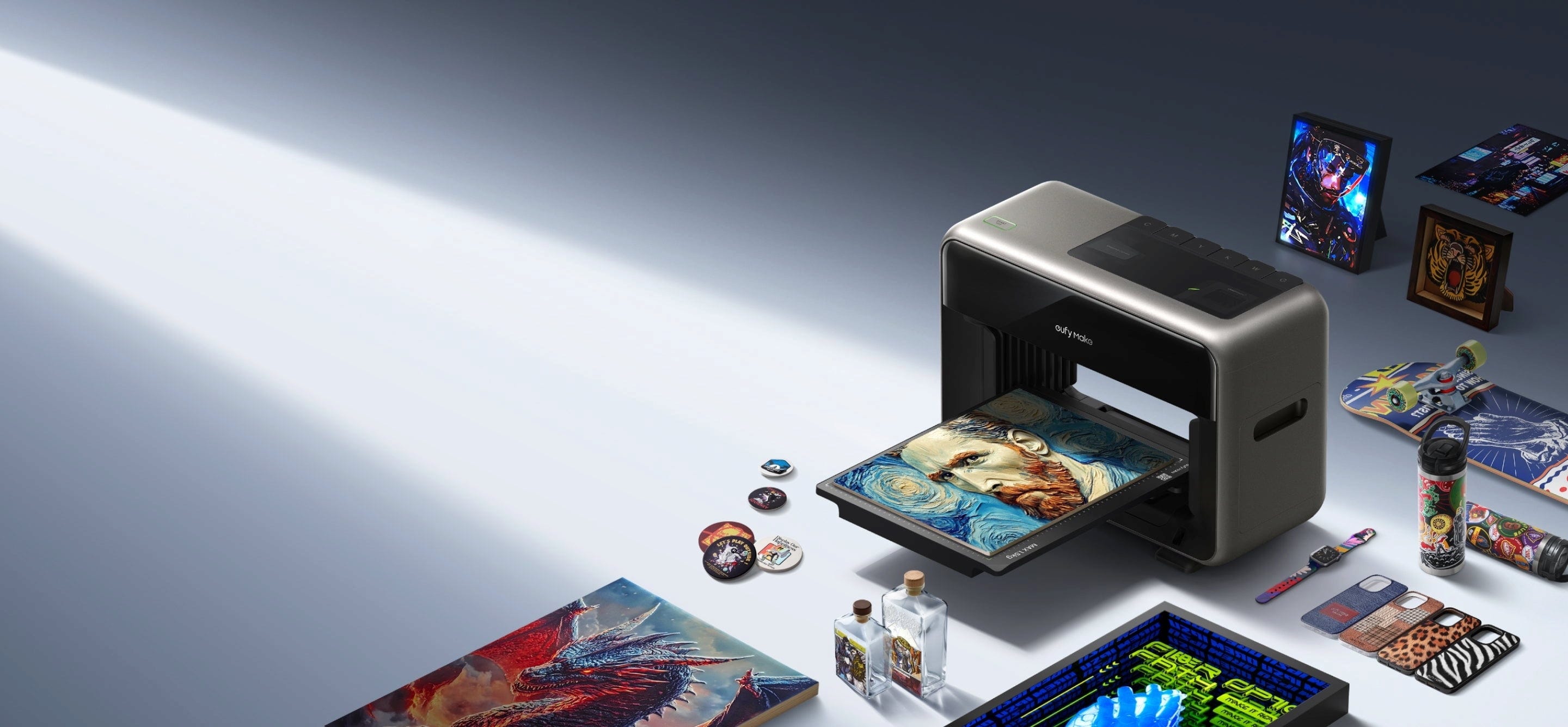

Print directly on over 300 materials, including: metal, wood, acrylic, glass, ceramic, stone, leather, fabric and more. Are your ideas already ready to print?

Flexible Print Modes

  • Flatbed printing: Up to 5 mm material height, print area up to 330 x 420 mm.
  • Mini-flatbed: Print several small objects (e.g. magnets) simultaneously.
  • Rotary printing: For cylindrical and conical objects such as mugs or bottles.

Intelligent Automation

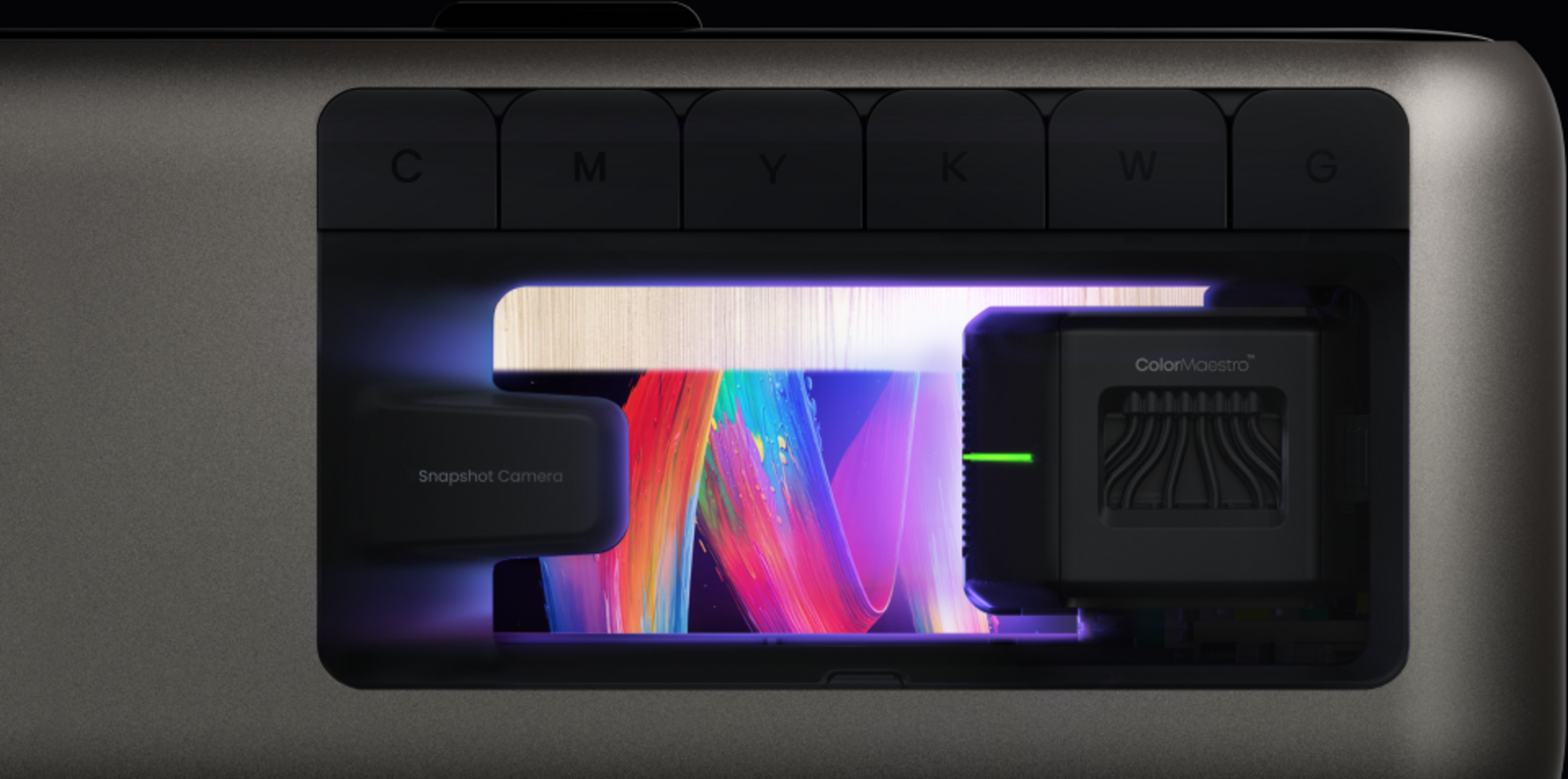

The combination of dual-laser and snapshot camera offers exact height and contour detection even with transparent materials.

JetClean Maintenance

The JetClean self-cleaning system reduces nozzle clogging and ensures stable print operation with minimal maintenance effort.

Further Features:

  • Integrated air filtration system reduces odours and VOCs,

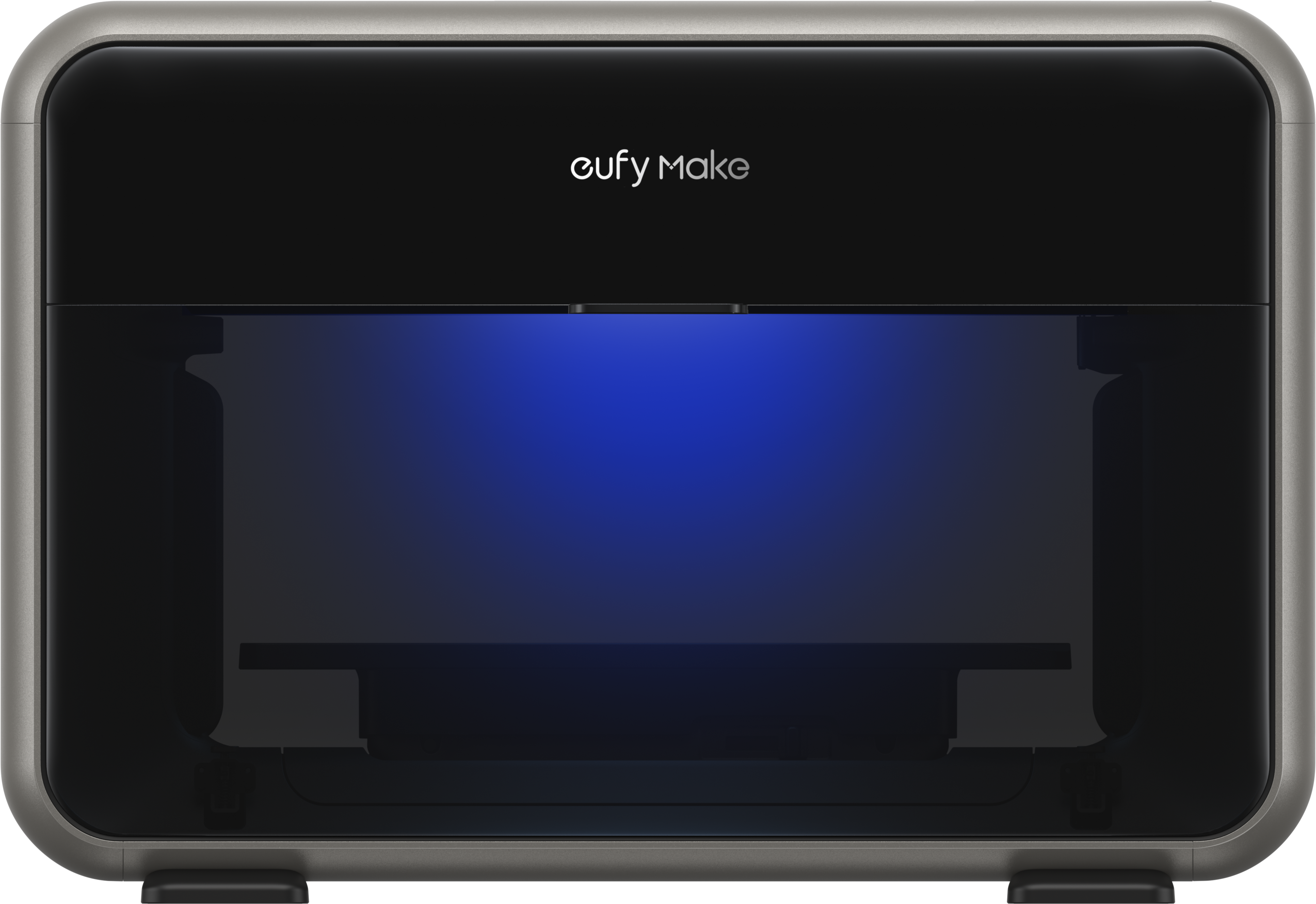

  • UV isolation system blocks over 90 % of the UV radiation for more safety.

Included in delivery:

  • 1 x E1 UV printer including accessories:
    • 1 x Mini Adhesive Mat
    • 1 x Mini Flatbed
    • 1 x Standard Adhesive Mat
    • 1 x Standard Flatbed
    • 1 x Air Filter
    • 1 x 2.5 mm Allen key
    • 3 x printing material samples
    • 1 x UV protective goggles
    • Power cable + power adapter
  • 6 x UV inks (CMYKWG)

  • 1 x Cleaning Cartridge

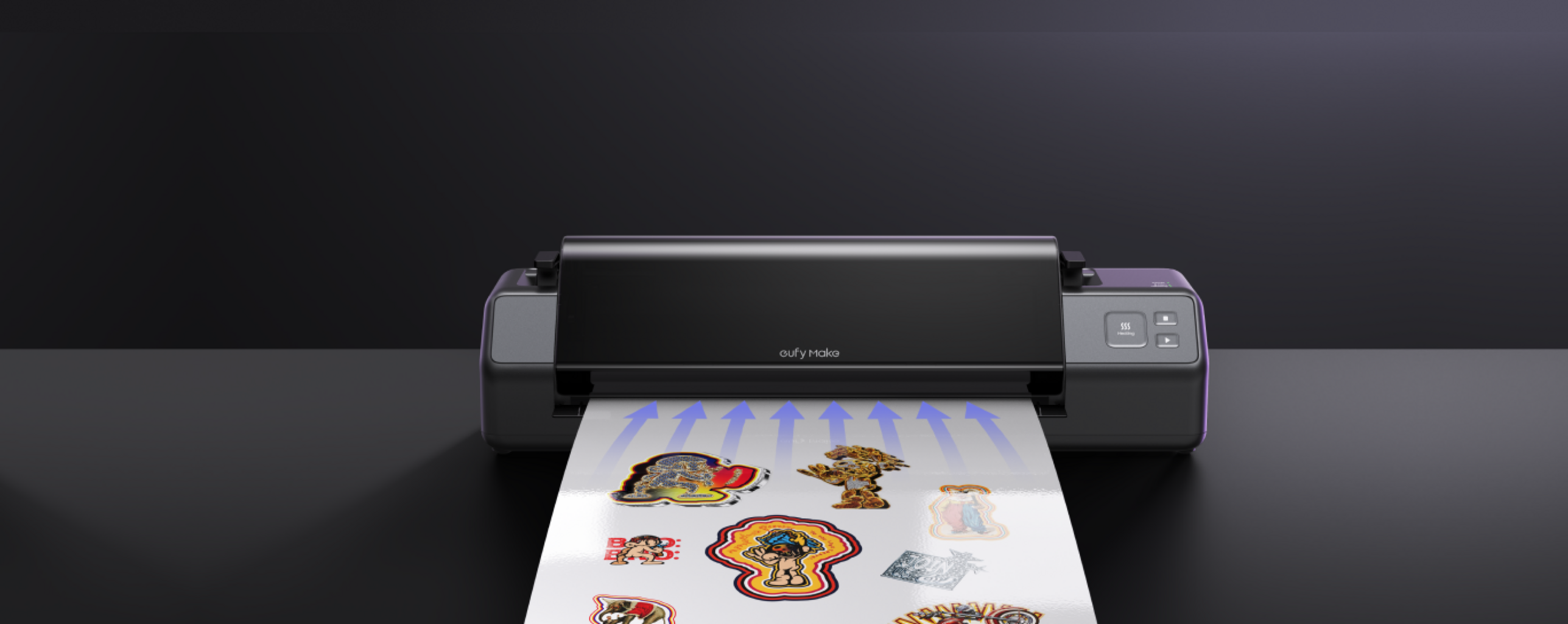

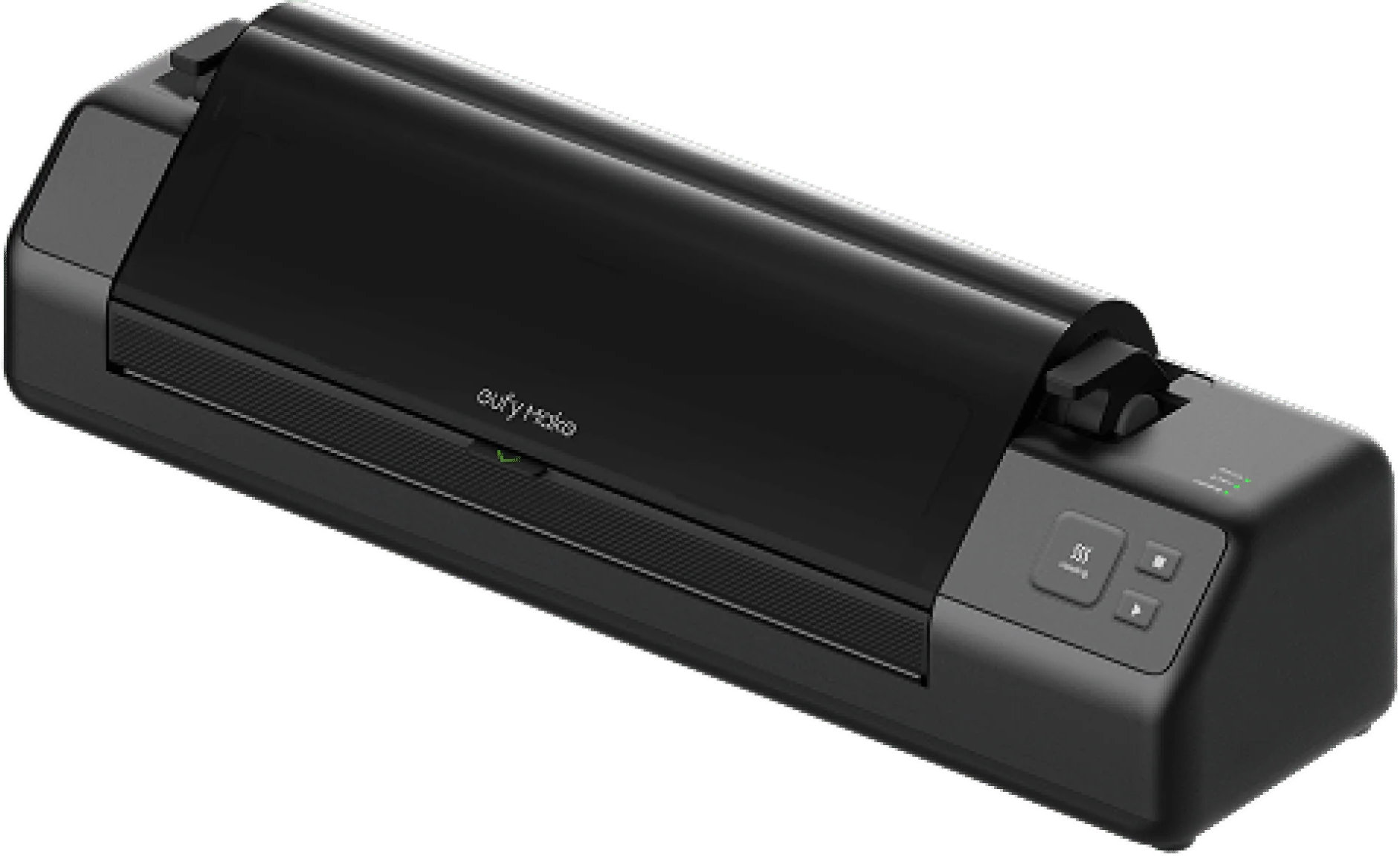

  • 1 x UV DTF Laminating Machine incl. accessories:
    • 25 x UV DTF A film, 310 x 400mm
    • 1 x UV DTF B film, 30 m

Technical Specifications:

Printer Type Piezo Inkjet Printer
Dimensions 590 x 250 x 407 mm
Weight 20 kg
Voltage, Power 100-240 V, 50-60 Hz
max. 66 W
Operating Humidity 20-85 % relative humidity
Operating Temperature 15-35 °C
Operating Noise Level <60 dB
Print Resolution 1440 DPI
Print Area 330 x 420 mm
Relief Print Height max. 5 mm
Print Load max. 1.5 kg
Print Modes Flatbed (integrated)
Rotary printing (with rotary attachment - NOT included in delivery)
Transfer film (with roll-to-film attachment - NOT included in delivery)
Colour Profile CMYKWG
Supported Substrates Wood, Metal, Glass, Plastic
Auto. Height Adjustment Range ±0.5 mm
Camera Resolution 8 MP
Nozzle Maintenance JetClean Automatic Self-Cleaning and Maintenance System
UV Light Protection Class > 90% (under sealed conditions)
Connectivity Wi‑Fi IEEE 802.11 b/g/n, 2.4 GHz

This set includes:

Hazard and precautionary statements

UV Ink Set

  • shop.shopwawiproductcertificate.hazard_pict.GHS05
  • shop.shopwawiproductcertificate.hazard_pict.GHS07
  • shop.shopwawiproductcertificate.hazard_pict.GHS08
  • shop.shopwawiproductcertificate.hazard_pict.GHS09

Signal word: Danger

Precautionary statements:

  • P202 - Do not handle until all safety precautions have been read and understood.
  • P260 - Do not breathe dust/fume/gas/mist/vapours/spray.
  • P264 Wash hands, underarms and face thoroughly after handling.
  • P271 - Use only outdoors or in a well-ventilated area.
  • P273 - Avoid release to the environment.
  • P280 - Wear protective gloves/protective clothing/eye protection/face protection.
  • P310 - Contact your doctor/poison control centre immediately.
  • P302+P352 - IF ON SKIN: Wash with plenty of water/soap
  • P305+P351+P338 - IF IN EYES: Rinse cautiously with water for several minutes. Remove contact lenses, if present and easy to do. Continue rinsing.
  • P308+P311 IF exposed or concerned: Call a POISON CENTER/doctor.
  • P333+P313 - If skin irritation or rash occurs: Get medical advice/attention.
  • P337+P313 - If eye irritation persists: Get medical advice/attention.
  • P405 - Store locked up.
  • P403+P233 - Store in a well-ventilated place. Keep container tightly closed.
  • P501 Dispose of contents/container of a collection centre for hazardous or special waste, in accordance with local, regional, national and/or international regulations.
  • P270 - Do not eat, drink or smoke when using this product.

Hazard statements:

  • H302 - Harmful if swallowed
  • H315 - Causes skin irritation
  • H317 - May cause an allergic skin reaction
  • H318 - Causes serious eye damage.
  • H319 - Causes serious eye irritation
  • H335 - May cause respiratory irritation
  • Suspected of causing cancer.
  • H360FD - May damage fertility. Suspected of damaging the unborn child.
  • Causes damage to organs through prolonged or repeated exposure.
  • May cause damage to organs through prolonged or repeated exposure.
  • H411 - Toxic to aquatic life with long lasting effects
