Micro-Swiss FlowTech™ Hyper-CHT™ Nozzle, 0,6 mm
High-flow nozzle with a six-chamber design for up to 95% higher throughput
CHF 34.50
(Price shown includes 8,1% VAT.
Features & Advantages
- 6-chamber CHT technology
- Up to 95% more flow
- 250 mm² heating surface
- Nano-WS2 coating
Related products
Product information & technical details
- Item no.: MS-M2910-06
- Content: 1 pc
- EAN: 850041631806
- Manufacturer No.: M2910-06
- Manufacturer: Micro-Swiss
- Product type: Nozzles
- Nozzle Diameter: 0,4 mm, 0,6 mm, 0,8 mm, 1.0 mm
- Filament Diameter: 1,75 mm
Description

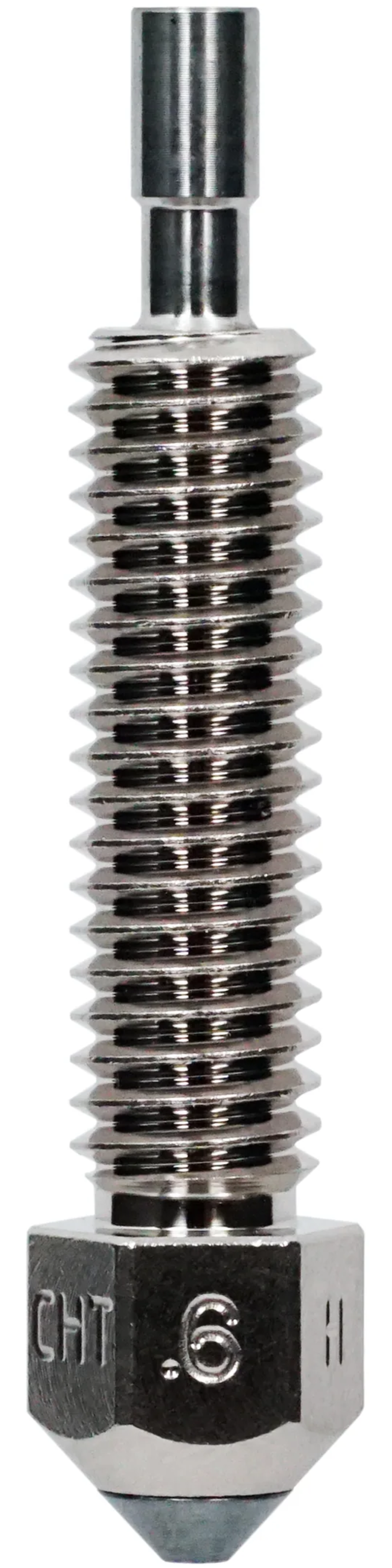

The Micro Swiss FlowTech™ Hyper-CHT™ Nozzle is a high-flow nozzle for the FlowTech hotend system. Thanks to its six-chamber internal geometry, it delivers significantly higher melting performance than conventional standard nozzles.
At the heart of the Hyper-CHT Nozzle is a six-chamber internal structure that increases the effective heating surface from 110 mm² in a standard nozzle to 250 mm². The enlarged contact area between the melt channel and the filament allows the material to be melted faster and more evenly, forming the basis for the higher flow performance. As a result, the volumetric flow rate increases by up to 95% compared with a standard nozzle. In practical use, this means noticeably shorter print times with comparable layer settings.
The nozzle tip is hardened to 68 HRC and electroless nickel-plated. In addition, a Nano-WS2 coating with a coefficient of friction of 0.035 helps reduce the adhesion of molten residue. This also makes the nozzle suitable for abrasive filaments such as carbon or glass fibre-reinforced materials.
► Tip: The Hyper-CHT Nozzle is compatible with all Micro Swiss FlowTech hotends. It is not suitable for standard hotends without a FlowTech conversion.
Technical specifications:
| Internal geometry | 6 chambers (CHT technology) |
| Heating surface | 250 mm² |
| Flow rate increase | up to 95% |
| Tip hardness | 68 HRC |
| Plating | electroless nickel |
| Coating | Nano-WS2, coefficient of friction 0.035 |
| Compatibility | Micro Swiss FlowTech hotends only |
